Constraints API Specification

Abstract

A proposed generic API that allows constraints to be specified during the block building process, enabling the existing PBS architecture to more easily support arbitrary proposer commitment protocols.

This is modified version of the generic constraints specification, specific to Interstate: https://github.com/eth-fabric/constraints-specs/blob/main/specs/constraints-api.md

Motivation

Many Ethereum proposers already delegate their block-building responsibilities to more sophisticated actors via PBS, but today, this delegation is largely all-or-nothing, giving proposers little control over individual transaction inclusion or ordering.

We want proposers to have the ability to make more fine-grained commitments. One important example is preconfirmations, where proposers can give ahead-of-time guarantees about the inclusion or execution of transactions within their slots. This approach offers a pathway to faster user experiences without requiring changes to Ethereum’s core protocol (i.e., 2 second slot times). Instead of implementing a hard fork, we can enhance the existing out-of-protocol PBS architecture to support more flexible proposer commitments.

Since the proposer commitment space is still nascent, our goal is to design a generic and future-proof API that can accommodate arbitrary proposer commitments, including but not limited to preconfirmations.

API Scope

In Scope (Constraints API)

  • the delegation of block-building responsibilities from proposers to gateways
  • the submission of constraints to the relay
  • the retrieval of constraints from the relay
  • the submission of blocks and proofs of constraint validity to the relay
  • the retrieval of block headers and proofs of constraint validity from the relay

Out of Scope (Commitments API)

  • any interaction between third parties (Users, Wallets, etc) and the Gateway.
  • commitments from Gateways to third parties

Terminology

TermDescription
ProposerAn Ethereum validator with the rights to propose an L1 block.
CommitmentA binding message commiting the proposer to perform an action as part of their block proposal duties.
ConstraintInstructions for block builders to build blocks that adhere to proposer commitments.
DelegationA binding message signed by a Proposer to delegate Constraint and Commitment submission authority. Self-delegations are allowed but if delegated to a third party, they are referred to as a Gateway.
GatewayThe third party with Constraint and Commitment submission authority granted by the Proposer.
BuilderA party specialized in constructing Execution Payloads and providing proofs that Constraints are followed.
RelayA party that facilitates message passing. This includes the fair exchange of Execution Payloads and Constraints proofs between Builders and Proposers, Constraints between Gateways and Builders, and Delegations between Proposers and Gateways.

API Summary

NamespaceMethodEndpointDescription
constraintsPOST/constraints/v0/builder/constraintsEndpoint for Proposer or Gateway to submit a batch of signed constraints to the Relay.
constraintsPOST/constraints/v0/builder/delegateEndpoint for Proposer to delegate constraint submission rights to a Gateway.
constraintsGET/constraints/v0/builder/header_with_proofsEndpoint for Proposer to request a builder bid with proof of constraint validity.
constraintsGET/constraints/v0/builder/capabilitiesEndpoint to retrieve the constraint capabilities of the Relay.
constraintsGET/constraints/v0/relay/delegationsEndpoint to retrieve the signed delegations for the proposer of a given slot, if it exists.
constraintsGET/constraints/v0/relay/constraintsEndpoint to retrieve the signed constraints for a given slot.
constraintsGET/constraints/v0/relay/constraints_streamEndpoint to retrieve an SSE stream of signed constraints.
constraintsPOST/constraints/v0/relay/blocks_with_proofsEndpoint for Builder to submit a block with proofs of constraint validity to the Relay.
constraintsGET/constraints/v0/relay/blocks_satisfying_constraintsThis endpoint allows the validator to receive only blocks that satisfy the constraints submitted by gateway. Validator can submit any block received from this endpoint and satisfy constraints

Constraints API Endpoints

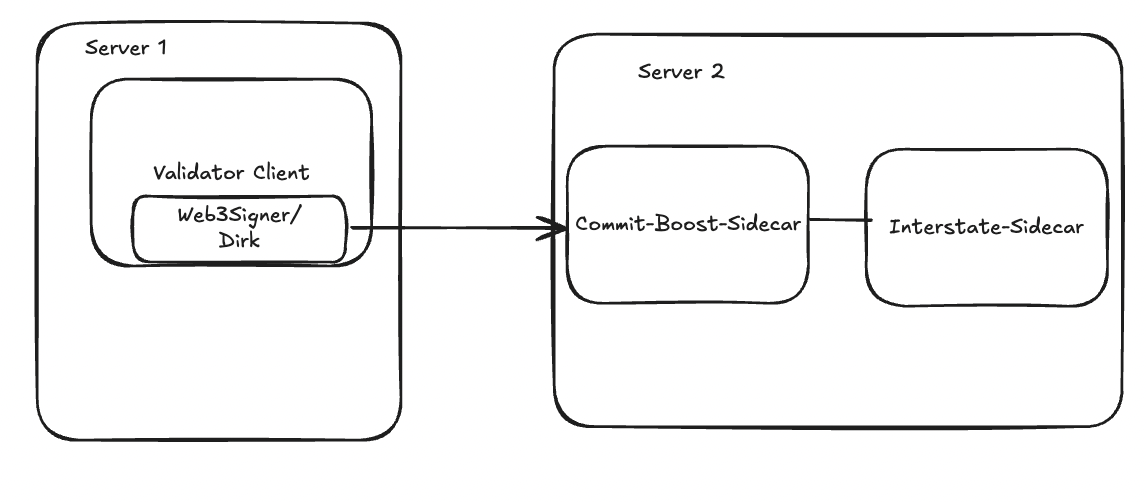

Architecture overview

Proposer-facing API

Endpoint: /constraints/v0/builder/constraints

Endpoint for submitting a batch of constraints to the relay. The constraints are expected to be signed by a delegate BLS private key, whose corresponding public key is specified in a SignedDelegation message defined below.

  • Method: POST

  • Response: Empty

  • Headers:
    • Content-Type: application/json

  • Body: JSON object of type SignedConstraints[]

  • Schema
    # A signed "bundle" of constraints.
class SignedConstraints(Container):
    message: ConstraintsMessage
    signature: BLSSignature

# A "bundle" of constraints for a specific slot.
class ConstraintsMessage(Container):
    proposer: BLSPubkey
    delegate: BLSPubkey
    slot: uint64
    constraints: List[Constraint]
    receivers: List[BLSPubkey]

# A constraint for transaction[s]
class Constraint(Container):
    constraintType: uint64
    payload: Bytes
  • Description

    For each Commitment the delegate signs, they will need to create a matching Constraint. Collectively, a SignedConstraints message is posted to the relay.

    • constraintType: unsigned 64-bit number between 0 and 0xffffffffffffffff that represents the type of the proposer commitment
    • payload: opaque byte array whose interpretation is dependent on the constraintType

    Particularly each constraintType would have a corresponding spec that defines:

    • a schema for a Commitment and SignedCommitment message
    • how a Constraint.payload is interpreted
    • how a Constraint.payload is created given a SignedCommitment
    • the ordering of constraints[]
    • how to build a valid block given a ConstraintsMessage
    • how to generate proofs of constraint validity
    • how to verify proofs of constraint validity

    Additional requirements:

    • To ensure deterministic behavior for stateful constraints it is required for the ConstraintsMessage.Constraints[] to be processed in the order received.
    • The ConstraintsMessage.Receivers[] field contains a list of public keys that are authorized to access these constraints. If this list is empty, the constraints are publicly accessible to anyone.
  • Example

    While the Commitments API is out of scope, the following example demonstrates how a proposer might use the Constraints API to commit to a set of transactions.

    • Assume a user wants their L1 transaction to be included at slot N.
    • The user's wallet creates a Commitment message and sends it to the delegated Gateway via the Commitments API, receiving a SignedCommitment in return.
    • The Gateway creates a Constraint message, where the constraintType corresponds to the Commitment - in this case a generic L1 inclusion preconfirmation.
    • After aggregating other commitments, the Gateway sends the SignedConstraints to the Relay, who makes them available to Builders.
    • Builders will compete to build the best block that satisfies the constraints.
    • Before committing to a builder's block, the proposer can verify the constraints were followed by checking the constraint proofs against the block header.
    • Upon block proposal, the user's preconfirmed transaction is included in the L1.

    As demonstrated by this example, the Constraints API does not have any opinions on the exact nature of the Constraint or Commitment messages, rather the schema is left generic to support arbitrary proposer commitments. Inevitably there will be some common commitmentTypes and constraintTypes that the community can align on but this is out of scope for the Constraints API.

Endpoint: /constraints/v0/builder/delegate

Endpoint for a Proposer to delegate constraint submission rights to a Gateway. The SignedDelegation message is posted to a Relay who makes this available.

  • Method: POST

  • Response: Empty

  • Headers:
    • Content-Type: application/json

  • Body: JSON object of type SignedDelegation

  • Schema
    # A signed delegation
class SignedDelegation(Container):
    message: Delegation
    signature: BLSSignature

# A delegation from a proposer to a BLS public key
class Delegation(Container):
    proposer: BLSPubkey
    delegate: BLSPubkey
    committer: Address
    slot: Slot
    metadata: Bytes
  • Description

    A proposer can delegate constraint submission rights by signing a Delegate message with their proposer BLS private key. A SignedDelegation binds the proposer public key to the delegate public key and a committer address for the specified slot. During this time, the delegate can submit constraints to the relay on behalf of the proposer.

    • proposer: The BLS public key of the proposer who is delegating constraint submission rights.
    • delegate: The BLS public key of the gateway who is receiving constraint submission rights.
    • committer: The address of a committer ECDSA key for issuing commitments via the Commitments API.
    • slot: The slot number that a SignedDelegation is valid for.
    • metadata: Additional opaque byte array reserved for Gateways to interpret.

    While the Constraints API aims to be unopinionated about how slasher contracts are implemented, it's assumed that SignedDelegation messages are part of the evidence used to slash a proposer.

Endpoint: /constraints/v0/builder/header_with_proofs/{slot}/{parent_hash}/{pubkey}

Endpoint for requesting a builder bid with constraint proofs from a Relay.

  • Method: GET

  • Response: VersionedSignedBuilderBidWithProofs

  • Parameters:
    • slot: string (regex [0-9]+)
    • parent_hash: string (regex 0x[a-fA-F0-9]+)
    • pubkey: string (regex 0x[a-fA-F0-9]+)

  • Body: Empty

  • Schema
    class VersionedSignedBuilderBidWithProofs:
    ... # All regular fields from VersionedSignedBuilderBid, additionally
    proofs: ConstraintProofs

class ConstraintProofs(Container):
    constraintTypes: List[uint64, MAX_CONSTRAINTS_PER_SLOT]
    payloads: List[Bytes, MAX_CONSTRAINTS_PER_SLOT]
  • Description

    The VersionedSignedBuilderBidWithProofs schema extends VersionedSignedBuilderBid from the original builder specs to include proofs of constraint validity. Without leaking the block's contents, a Proposer can verify that the block satisfies the constraints by checking the proofs against the block header. To support a wide range of constraint types with different proving requirements, ConstraintProofs is left open-ended to allow for future flexibility.

    • constraintTypes: list of unsigned 64-bit numbers between 0 and 0xffffffffffffffff that represents the type of the proposer commitment (not required to be homogeneous)
    • payloads: list of opaque byte arrays whose interpretation is dependent on the constraintTypes

  • Requirements:

    • each constraintType has a spec that defines how builders can generate proofs for their block
    • each constraintType has a spec that defines how relays and proposers can verify proofs
    • When serializing, the proofs field must be present in data, at the same level of signature and message. See the example below.
    • The length of constraintTypes and payloads must be the same
  • Example Payload
    # constraintType = 0x00
class InclusionProof(Container):
    tx_hash: Bytes32
    index: uint64
    merkle_hashes: List[Bytes32]

# example inclusion proofs
proof_0 = InclusionProof(
    tx_hash="0xcf8e...", index=7, merkle_hashes=["0xa7bc...", "0xd912...", ...]
).ssz_encode()

proof_1 = InclusionProof(
    tx_hash="0x9fbb...", index=9, merkle_hashes=["0xeeab...", "0x1a2c...", ...]
).ssz_encode()

# example envelope for multiple proofs
proofs = ConstraintProofs(
    constraintTypes=[0x00, 0x00],
    payloads=[
        proof_0,
        proof_1,
    ],
)
  • Example Response
    {
    "version": "deneb",
    "data": {
        "message": {
            "header": {
                "parent_hash": "0xcf8e0d4e9587369b2301d0790347320302cc0943d5a1884560367e8208d920f2",
                "fee_recipient": "0xabcf8e0d4e9587369b2301d0790347320302cc09",
                "state_root": "0xcf8e0d4e9587369b2301d0790347320302cc0943d5a1884560367e8208d920f2",
                "receipts_root": "0xcf8e0d4e9587369b2301d0790347320302cc0943d5a1884560367e8208d920f2",
                "logs_bloom": "0x00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000",
                "prev_randao": "0xcf8e0d4e9587369b2301d0790347320302cc0943d5a1884560367e8208d920f2",
                "block_number": "1",
                "gas_limit": "1",
                "gas_used": "1",
                "timestamp": "1",
                "extra_data": "0xcf8e0d4e9587369b2301d0790347320302cc0943d5a1884560367e8208d920f2",
                "base_fee_per_gas": "1",
                "blob_gas_used": "1",
                "excess_blob_gas": "1",
                "block_hash": "0xcf8e0d4e9587369b2301d0790347320302cc0943d5a1884560367e8208d920f2",
                "transactions_root": "0xcf8e0d4e9587369b2301d0790347320302cc0943d5a1884560367e8208d920f2",
                "withdrawals_root": "0xcf8e0d4e9587369b2301d0790347320302cc0943d5a1884560367e8208d920f2"
            },
            "blob_kzg_commitments": [
                "0xa94170080872584e54a1cf092d845703b13907f2e6b3b1c0ad573b910530499e3bcd48c6378846b80d2bfa58c81cf3d5"
            ],
            "value": "1",
            "pubkey": "0x93247f2209abcacf57b75a51dafae777f9dd38bc7053d1af526f220a7489a6d3a2753e5f3e8b1cfe39b56f43611df74a"
        },
        "proofs": {
            "constraintTypes": [0x00, 0x00],
            "payloads": ["0x5097...", "0x932587..."]
        },
        "signature": "0x1b66ac1fb663c9bc59509846d6ec05345bd908eda73e670af888da41af171505cc411d61252fb6cb3fa0017b679f8bb2305b26a285fa2737f175668d0dff91cc1b66ac1fb663c9bc59509846d6ec05345bd908eda73e670af888da41af171505"
    }
}

Endpoint: /constraints/v0/builder/capabilities

Endpoint to retrieve the constraint capabilities of the Relay.

  • Method: GET

  • Parameters: None

  • Headers: None

  • Response: ConstraintCapabilities

  • Schema
    class ConstraintCapabilities(Container):
    constraintTypes: List[uint64]
  • Example Response
    {
    "constraintTypes": [0x00, 0x01]
}
  • Description

    The ConstraintCapabilities object defines the constraint types that the Relay supports. Gateways and Builders can use this to update their software accordingly.

Builder-facing API

Endpoint: /constraints/v0/relay/delegations/{slot}

Return the active delegations for the proposer of this slot, if they exist.

  • Method: GET

  • Response: SignedDelegation[]

  • Parameters:
    • slot: string (regex [0-9]+)

  • Body: Empty

  • Example Response
    [
    {
        "message": {
            "proposer": "0x93247f2209abcacf57b75a51dafae777f9dd38bc7053d1af526f220a7489a6d3a2753e5f3e8b1cfe39b56f43611df74a",
            "delegate": "0x84e47f2209abcacf57b75a51dafae777f9dd38bc7053d1af526f220a7489a6d3a2753e5f3e8b1cfe39b56f43611df74b",
            "committer": "0xabcf8e0d4e9587369b2301d0790347320302cc09",
            "slot": "12345",
            "metadata": "0xe9587369b2301d0790347320302cc069b2301d0790347320302cc0943d5a1884560367e8208d920f2e9587369b2301de9587369b2301d0790347320302cc0"
        },
        "signature": "0x1b66ac1fb663c9bc59509846d6ec05345bd908eda73e670af888da41af171505cc411d61252fb6cb3fa0017b679f8bb2305b26a285fa2737f175668d0dff91cc1b66ac1fb663c9bc59509846d6ec05345bd908eda73e670af888da41af171505"
    }
]
  • Description

    The Relay should only return signed delegations that were signed by the proposer.

Endpoint: /constraints/v0/relay/constraints/{slot}

Returns all signed constraints for a given slot, if they exist. The request requires authorization via the X-Receiver-Signature header which is a BLS signature over the requested slot number. If there are restrictions on accessing constraints, the Relay will check the signature against the BLS public keys in ConstraintsMessage.Receivers[].

  • Method: GET

  • Response: SignedConstraints[]

  • Parameters:
    • slot: string (regex [0-9]+)

  • Body: Empty

  • Headers:
    • Content-Type: application/json
    • X-Receiver-Signature: <BLS signature>
  • Example Response
    [
    {
        "message": {
            "proposer": "0x93247f2209abcacf57b75a51dafae777f9dd38bc7053d1af526f220a7489a6d3a2753e5f3e8b1cfe39b56f43611df74a",
            "delegate": "0x93247f2209abcacf57b75a51dafae777f9dd38bc7053d1af526f220a7489a6d3a2753e5f3e8b1cfe39b56f43611df74a",
            "slot": "12345",
            "constraints": [
                {
                    "constraintType": "0x00",
                    "payload": "0x301d0790347320302cc0943d5a1884560367e8208d920f2e9587369b2301de9587369b2301d0790347320302cc0"
                },
                {
                    "constraintType": "0x01",
                    "payload": "0x367e8208d920f2e9587369b2301de9587369b2301d0790347320302cc0301d0790347320302cc0943d5a1884560367e8208d920f2e958"
                }
            ],
            "receivers": [
                "0x93247f2209abcacf57b75a51dafae777f9dd38bc7053d1af526f220a7489a6d3a2753e5f3e8b1cfe39b56f43611df74a",
                "0x84e47f2209abcacf57b75a51dafae777f9dd38bc7053d1af526f220a7489a6d3a2753e5f3e8b1cfe39b56f43611df74b"
            ]
        },
        "signature": "0x1b66ac1fb663c9bc59509846d6ec05345bd908eda73e670af888da41af171505cc411d61252fb6cb3fa0017b679f8bb2305b26a285fa2737f175668d0dff91cc1b66ac1fb663c9bc59509846d6ec05345bd908eda73e670af888da41af171505"
    }
]
  • Description

    The Relay should only return signed constraints that were signed by the proposer or a gateway that was delegated to by the proposer.

Endpoint: /constraints/v0/relay/constraints_stream/{slot}

Returns a stream of constraints via Server-Sent Events (SSE). The request requires authorization via the X-Receiver-Signature header which is a BLS signature over the requested slot number. If there are restrictions on accessing constraints, the Relay will check the signature against the BLS public keys in ConstraintsMessage.Receivers[].

  • Method: GET

  • Response: Server-sent events containing SignedConstraints[] objects

  • Parameters:
    • slot: string (regex [0-9]+)

  • Body: Empty

  • Headers:

    • Content-Type: text/event-stream
    • Cache-Control: no-cache
    • Connection: keep-alive
    • X-Receiver-Signature: <BLS signature>
  • Example Response
    event: json
data: [
    {
        "message": {
            "proposer": "0x93247f2209abcacf57b75a51dafae777f9dd38bc7053d1af526f220a7489a6d3a2753e5f3e8b1cfe39b56f43611df74a",
            "delegate": "0x93247f2209abcacf57b75a51dafae777f9dd38bc7053d1af526f220a7489a6d3a2753e5f3e8b1cfe39b56f43611df74a",
            "slot": "12345",
            "constraints": [
                {
                    "constraintType": "0x00",
                    "payload": "0x301d0790347320302cc0943d5a1884560367e8208d920f2e9587369b2301de9587369b2301d0790347320302cc0"
                },
                {
                    "constraintType": "0x01",
                    "payload": "0x367e8208d920f2e9587369b2301de9587369b2301d0790347320302cc0301d0790347320302cc0943d5a1884560367e8208d920f2e958"
                }
            ],
            "receivers": [
                "0x93247f2209abcacf57b75a51dafae777f9dd38bc7053d1af526f220a7489a6d3a2753e5f3e8b1cfe39b56f43611df74a",
                "0x84e47f2209abcacf57b75a51dafae777f9dd38bc7053d1af526f220a7489a6d3a2753e5f3e8b1cfe39b56f43611df74b"
            ]
        },
        "signature": "0x1b66ac1fb663c9bc59509846d6ec05345bd908eda73e670af888da41af171505cc411d61252fb6cb3fa0017b679f8bb2305b26a285fa2737f175668d0dff91cc1b66ac1fb663c9bc59509846d6ec05345bd908eda73e670af888da41af171505"
    }
]
  • Description

    This endpoint is a streaming endpoint meant to reduce round-trip latency via SSE, allowing Relays to push new constraints to Builders in realtime. The Relay should only return signed constraints that were signed by the proposer or a gateway that was delegated to by the proposer.

Endpoint: /constraints/v0/relay/blocks_with_proofs?cancellations={cancellations}

Endpoint for submitting blocks with proofs of constraint validity to a Relay.

  • Method: POST

  • Parameters:
    • cancellations: bool (query)
  • Headers:
    • Content-Type: application/json

  • Body: JSON object of type VersionedSubmitBlockRequestWithProofs

  • Response: Empty

  • Schema
    class VersionedSubmitBlockRequestWithProofs:
    ... # All regular fields from VersionedSubmitBlockRequest, additionally
    proofs: ConstraintProofs

class ConstraintProofs(Container):
    constraintTypes: List[uint64, MAX_CONSTRAINTS_PER_SLOT]
    payloads: List[Bytes, MAX_CONSTRAINTS_PER_SLOT]
  • Description

    The VersionedSubmitBlockRequestWithProofs schema extends VersionedSubmitBlockRequest from the original relay specs to include proofs of constraint validity. A Builder can protect their block's content while proving that the block satisfies the constraints by including proofs in the VersionedSubmitBlockRequestWithProofs message. To support a wide range of constraint types with different proving requirements, ConstraintProofs is left open-ended to allow for future flexibility.

    • constraintTypes: list of unsigned 64-bit numbers between 0 and 0xffffffffffffffff that represents the type of the proposer commitment (not required to be homogeneous)
    • payloads: list of opaque byte arrays whose interpretation is dependent on the constraintTypes
    • if cancellations is true, the Builder is signaling to opt into bid cancellations

  • Requirements:

    • each constraintType has a spec that defines how builders can generate proofs for their block
    • each constraintType has a spec that defines how relays and proposers can verify proofs
    • The length of constraintTypes and payloads must be the same
  • Example Payload
    {
"message": {
    "slot": "102",
    "parent_hash": "0x65b83b421bce1cd05bce2d86eb3233122c150e790770a0083e767a137bb5a2ed",
    "block_hash": "0xd1f43eacf8061a694b2bbe0798b1e50b99084cfdf136ba1fd5ec020f14271010",
    "builder_pubkey": "0xaa1488eae4b06a1fff840a2b6db167afc520758dc2c8af0dfb57037954df3431b747e2f900fe8805f05d635e9a29717b",
    "proposer_pubkey": "0xae5302796cfeca685eaf37ffd5baeb32121f2f07415bee26cc0051ee513ff3932d2c365e3d9f87b0949a5980445cb64c",
    "proposer_fee_recipient": "0x8943545177806ED17B9F23F0a21ee5948eCaa776",
    "gas_limit": "27616981",
    "gas_used": "295536",
    "value": "418266798562488"
},
"execution_payload": {
    "parent_hash": "0x65b83b421bce1cd05bce2d86eb3233122c150e790770a0083e767a137bb5a2ed",
    "fee_recipient": "0x8943545177806ED17B9F23F0a21ee5948eCaa776",
    "state_root": "0x41a8bd9993a0efd49767892963cb30ea9695fc7ccab1f3deee417aa269a92f77",
    "receipts_root": "0x37677efb710ba86196a244c77746aff51c1c9f73c86d233485b8052d94716022",
    "logs_bloom": "0x00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000",
    "prev_randao": "0x77a34ab437d022f25433b37fc311c4115c4f691c5737caf93779b70a0e4d4c95",
    "block_number": "102",
    "gas_limit": "27616981",
    "gas_used": "295536",
    "timestamp": "1731939746",
    "extra_data": "0x496c6c756d696e61746520446d6f63726174697a6520447374726962757465",
    "base_fee_per_gas": "1882",
    "block_hash": "0xd1f43eacf8061a694b2bbe0798b1e50b99084cfdf136ba1fd5ec020f14271010",
    "transactions": [
    "0xf86f820154845acf6ba0825208946177843db3138ae69679a54b95cf345ed759450d87071afd498d0000808360306ca0210d69b34df72b8067d2e57961d525a5a8856ef9e8d16be96852db57bdc6aeada04dc401eeb7801b1f6b9efe1d843189bbfdca1acf8802810cee1d703f2649a50b",
    "0xf86f820155845acf6ba082520894687704db07e902e9a8b3754031d168d46e3d586e87071afd498d0000808360306ba0f11e0e52e772e58b1ad64aa919293e735a936a2b414677599b83b815053b42afa041894c134e87cdb095be478c170ea9442eb312d3505524ff478194fd29ac723d",
    "0xf86f820156845acf6ba08252089415e6a5a2e131dd5467fa1ff3acd104f45ee5940b87071afd498d0000808360306ca04bd1b80b7c1f4c2510247f42f7342c5291c67a15109f8d4e7cc73bf929e53cf2a060bb7a9994cd2a70794db653d801f56d33408b4dca456cf62d80325718ad43e0",
    "0xf86f820157845acf6ba08252089480c4c7125967139acaa931ee984a9db4100e0f3b87071afd498d0000808360306ba0dfb605c47f84cd9b0c4f90f39308e10e00bfaff38d4905ee211f51f3389cc272a021f37a9064ba4b98431a8c614c6f2ab02c8d6ffd2d4c6d896405cdac1386ed66",
    "0xf86f820158845acf6ba082520894d08a63244fcd28b0aec5075052cdce31ba04fead87071afd498d0000808360306ca05b046b8ff98792bde534233dea5f15cfe24d37963e77da9379813c4ced89dab6a007c2bd7de299aba36c60651c29302868ac94dcb4064db1cee96c6381da4ead7f",
    "0xf86f820159845acf6ba0825208940b06ef8be65fcda88f2dbae5813480f997ee8e3587071afd498d0000808360306ba09a1850c2f6080f662f983dcab161a83290a2b98792401e40d8bea15838cfce22a007e0cb2ae9b0057071820677783e4a2f7a04aeeb8faab7981b434ad1d9a24e5f",
    "0xf86f82015a845acf6ba0825208941cb96c5809da5977f99f69c11ee58bae5711c5f187071afd498d0000808360306ba071f5330b3d38b57e1c24dbbe82a86387d2310043a669fc5d7492dd88c192df02a05d78693952297460ccc4c8beaf3ec9b99653571d6539e5bcadbf7921e1f8728d",
    "0xf86f82015b845acf6ba0825208942aa48ee899410a6d97c01b0bb0eeaf1771cc435b87071afd498d0000808360306ca0d35d384046f37f9d1da5400df25b930a1692ca2a3a15684b973fdbd40cf34f4fa02906f6122f69991a2ca8b4edba5efc3f3982a85540182101985ce8e292ddbfff",
    "0xf86f82015c845acf6ba08252089407b9d920dd8e8d83dc1125c94fc0b3cdcdf602fb87071afd498d0000808360306ba0f85ab12940b7c5057958a090b9f3bac0a6a7cbcba5c93e818f14d6e24938bcfea0476cc76f82d36da2b2a77d0e520de992dd737508f54c2e710f68c45d6905d962",
    "0xf86f82015d845acf6ba082520894fcb6e353ad4f79245c7cb704abcffe2f4868424187071afd498d0000808360306ca0a50e3fe9877e524676ce519f34e7917f72ef6da9ca075ed65130eb7b828875f0a03764f3dfbf7e656e818dab076b31f223fd2486c275452e283f5e2d062b2e8b67",
    "0x02f8908330182480845acf6267845acf75718254ae94614561d2d143621e126e87831aef287678b442b8830186a0a0c20e0240904510085d38aa992039f3ec5a3bb57f7ede6f8924f86c810d261270c001a0993040420b9f88e6e94654d3d4bba64dfd942356d932137682a9ee9b68c08e1aa017127aa42b78c91c57de1dbb5b2852923977bc22c60ffc3e64796885311be88b",
    "0x02f8908330182401845acf6267845acf75718254ae94614561d2d143621e126e87831aef287678b442b8830186a0a006f8188796440f23e951c43dabc12708faf18f8e8f84417d1333945b86894cc3c001a0edf40236b9cdfbb25cda8810484340e9d5b1e1023922b37b1d483a5d1fb3f130a00c9ce488f82ce829caafa5c97e187a657f49414360307076bec56de53aabb918",
    "0x02f8908330182402845acf6267845acf75718254ae94614561d2d143621e126e87831aef287678b442b8830186a0a09498dae671e12a4df22225c07db38b1b6c4bf4207b9e49fb10062918fb9d4d8fc001a0a8038bf97cc0f7bc742b7b319b4d98154300eb941746f53c48362c55df1913d6a0728550ffc7c06da44f2d6d356285bc24236eac6628a879d5072321eb73d071e4",
    "0x02f86e83301824068082075a825208948943545177806ed17b9f23f0a21ee5948ecaa77687017c6953f31cb880c001a0462fb6848c16e585b786e4fc168bd20a3cb180ebf00e34b93fed9c42b0df0e76a03ac159e02cee545d3e24be5fbd26f902626e18bcf6626f50a7636d4de28834e7"
    ],
    "withdrawals": [],
    "blob_gas_used": "0",
    "excess_blob_gas": "0"
},
"signature": "0x86ee27935ac26ea3f6f8ed0f5bf44500809628cbe003dba4867462481d6a7ea97e13b41220b30181a38d3aeebde61de50e166e05968b03666e2708da3f8311e14848c58c0003b5e6eedc2e6de0dfe6fedbe15fe676bcd6ec867ff60a712b7166",
"proofs": {
    "constraintTypes": [0x00, 0x00],
    "payloads": ["0x5097...", "0x932587..."]
},
"blobs_bundle": { "commitments": [], "proofs": [], "blobs": [] }
}

Annotated Sequence Diagram

sequenceDiagram
autonumber
    participant Proposer
    participant Builder
    participant Relay
    participant Gateway
    participant Wallet
    participant User

    Proposer->>Relay: POST /delegate
    Builder->>Relay: GET /delegate
    User->>Wallet: POST /eth_sendTransaction
    Wallet->>Gateway: POST /eth_sendTransaction
    Gateway->>Gateway: Process transaction
    Gateway->>Wallet: SignedCommitment (preconf)
    Wallet->>User: SignedCommitment (preconf)
    Loop for each SignedCommitment
        Gateway->>Gateway: Create Constraint
    end
    Gateway->>Relay: POST /constraints
    Builder->>Relay: GET /constraints_stream
    Builder->>Builder: Build block

    Loop for each Constraint
        Builder->>Builder: Generate proof
    end
    Builder->>Relay: POST /blocks_with_proofs
    Relay->>Relay: PBS Auction
    Proposer->>Relay: GET /constraints
    Proposer->>Relay: GET /header_with_proofs
    Proposer->>Proposer: Verify proof[s]
    Proposer<<-->>Relay: ...
    Proposer->>Proposer: Propose block
    Note over User: Receive L1 confirmation

  • (1) Proposer signs Delegation with their validator BLS key

  • (2-3) Gateways and RPC Routers fetch SignedDelegation messages from Relay

  • (4-6) User sends a transaction via their Wallet which is routed to the correct Gateway

  • (7-10) Gateway processes transaction and returns SignedCommitment (preconf) to User

  • (11) Gateway creates Constraint for each SignedCommitment

  • (12) Gateway sends SignedConstraints to Relay

  • (13) Builder subscribes to SignedConstraints from Relay

  • (14-15) Builder builds block and proofs of constraint validity

  • (16) Builder sends VersionedSubmitBlockRequestWithProofs to Relay

  • (17) Relay verifies proofs and performs standard PBS auction

  • (18-20) Proposer verifies block follows constraints by checking proofs against the block header

  • (21) Continuation of standard PBS protocol

  • (22) Proposer proposes block to L1, and User receives L1 confirmation
